Container
Sales
As a shipping company we sell shipping container stock for domestic use
and for export
shipments
Please note !!! the domestic container stock are decomissioned
they NO longer carry CSC
(compliance plates)
This means they can not be put on rail or across any wharves to
be loaded on board vessels
The export stock will be sold with a CSC plate valid for 12 months |
| We convert our shipping containers
into offices, toilets, cold rooms, accommodation, kitchens, laboratories
click here to see for yourself on our Emergency
Homes |
| |
20' Dry Cargo
Container |
40' Dry Cargo
Container |
| SPECIFICATIONS |
8'6" STANDARD |
8'6" STANDARD |
| Inside Cubic Capacity |
32.8cu.m (1,158 cu.ft) |
67.2cu.m (2,372 cu.ft) |
| Cargo Capacity |
21,640 kg (47,716 Ibs.) |
26,500 kg (58,433 Ibs.) |
| Tare weight |
2,360 kg (5,204 Ibs.) |
3,980 kg (8,776 Ibs.) |
| |
OUTSIDE: |
INSIDE: |
OUTSIDE: |
INSIDE: |
| Length |
6.05m (19.84 ft) |
5.90m (19.35 ft) |
12.19m (40.00 ft) |
12.01m (39.39 ft) |
| Width |
2.44m (8.00 ft) |
2.35m (7.71 ft) |
2.44m (8.00 ft) |
2.35m (7.71 ft) |
| Height |
2.59m (8.50 ft) |
2.38m (7.80 ft) |
2.59m (8.50 ft) |
2.38m ( 7.80 ft) |
| DOOR SIZE: |
|
|
|
|
| Height |
2.28m (7.48 ft) |
|
2.28m(7.48 ft) |
|
| Width |
2.33m (7.64 ft) |
|
2.33m(7.64 ft) |
|
|
40' Dry Cargo
Hi-Cube Container |
 |
| SPECIFICATIONS |
9'6"
HI-CUBE |
| Inside Cubic Capacity |
75.9cu.m (2,679 cu.ft) |
| Cargo Capacity |
26,330 kg (58,058 Ibs.) |
| Tare weight |
4,150 kg (9,150 Ibs.) |
| |
OUTSIDE: |
INSIDE: |
| Length |
12.19m (40 ft) |
12.01m (39.39 ft) |
| Width |
2.44m (8.00 ft) |
2.35m (7.71 ft) |
| Height |
2.90m (9.50 ft) |
2.69m (8.82 ft) |
| DOOR SIZE: |
|
|
| Height |
2.58m (8.46 ft) |
|
| Width |
2.35m (7.71 ft) |
|
|
20'
Reefer Containers ( FINSAM ) |
| |
MODEL 2107 |
MODEL 2061/2084 |
| SPECIFICATIONS: |
|
|
| WEIGHTS: |
|
|
| Max. Gross Weight |
24,000 kg |
22,860 kg |
| Net Tare Weight |
3,230 kg |
3,800 kg |
| Payload |
20,770 kg |
19,060 kg |
| DIMENSIONS: |
INSIDE: |
INSIDE: |
| Length |
5,485 mm |
5,170 mm |
| Width |
2,250 mm |
2,235 mm |
| Height |
2,260 mm |
2,250 mm |
| DOOR OPENING: |
|
|
| Width |
2,230 mm |
2,235 mm |
| Height |
2,220 mm |
2,215 mm |
| VOLUMES: |
|
|
| Capacity |
27.9m3 (985 cu.ft) |
26.0m3 (918 cu.ft) |
|
20' BIN |
 |
| SPECIFICATIONS: |
|
| Cargo Capacity |
21,960 kg
(48,421Ibs.) |
| Max. Gross Weight |
2,040 kg
(4,498 Ibs.) |
| |
OUTSIDE: |
| Length |
6.06m (19.88 ft) |
| Width |
2.44m (8.00 ft) |
| Height |
1.30m (4.25 ft) |
| |

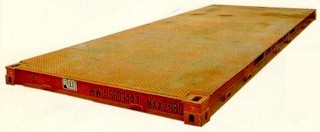

20' Bolster (PLATFORM) |
40' Bolster(PLATFORM) |
| SPECIFICATIONS |
|
|
| Cargo Capacity |
23,460 kg (51,729 Ibs.) |
26,260 kg (57,903 Ibs.) |
| Tare Weight |
1,940 kg (4,2777 Ibs.) |
4,220 kg (9,305 Ibs.) |
| Length (overall) |
6.06 m (19.88 ft) |
12.19 m (40.00 ft) |
| Width |
2.44 m (8.00 ft) |
2.44 m (8.00 ft) |
| Height |
0.23 m (0.66 ft) |
0.65 m (2.13 ft) |
| |
20' FLATRACK |
40' FLATRACK |
|
SPECIFICATIONS |
|
|
| Cargo Capacity |
approx 20,015 kg (44,133 Ibs.) |
approx 30,476 kg (67,200 Ibs.) |
| Tare weight |
up to 3,100 kg (6,835 Ibs.) |
approx 5,646 kg (12,450 Ibs.) |
| |
OUTSIDE: |
INSIDE: |
OUTSIDE: |
INSIDE: |
| Length |
6.06m (19.88 ft) |
5.85m (19.19 ft) |
12.19m (40.00 ft) |
12.05m (39.52 ft) |
| Width |
2.44m (8.00 ft) |
2.23m (7.31 ft) |
2.44m (8.00 ft) |
2.12m (6.95 ft) |
| Height |
2.44m (8.00 ft) |
2.15m (7.04 ft) |
2.44m (8.00 ft) |
1.96m (6.43 ft) |
| or |
2.59m (8.50 ft) |
or |
2.59m (8.50 ft) |
|
| |
20' OPEN TOP CONTAINER |
40' OPEN TOP CONTAINER |
| SPECIFICATIONS |
8'6" STANDARD |
8'6" STANDARD |
| Inside Cubic Capacity |
32.6cu.m (1,151 cu.ft) |
66.7cu.m (2,355 cu.ft) |
| Cargo Capacity |
21,700 kg (47,839 Ibs.) |
26,530 kg (58,490 Ibs.) |
| Tare weight |
2,300 kg (5,071 Ibs.) |
3,950 kg (8,710 Ibs.) |
| |
OUTSIDE: |
INSIDE: |
OUTSIDE: |
INSIDE: |
| Length |
6.06m (19.88 ft) |
5.88m (19.29 ft) |
12.19m (40.00 ft) |
12.01m (39.39 ft) |
| Width |
2.44m (8.00 ft) |
2.33m (7.64 ft) |
2.44m (8.00 ft) |
2.33m (7.64 ft) |
| Height |
2.59m (8.50 ft) |
2.31m (7.58 ft) |
2.59m (8.50 ft) |
2.31m (7.58 ft) |
| DOOR SIZE: |
|
|
|
|
| Height |
2.28m (7.48 ft) |
|
2.28m (7.48 ft) |
|
| Width |
2.33m (7.64 ft) |
|
2.33m (7.64 ft) |
|
|
